P92 Echo MkII

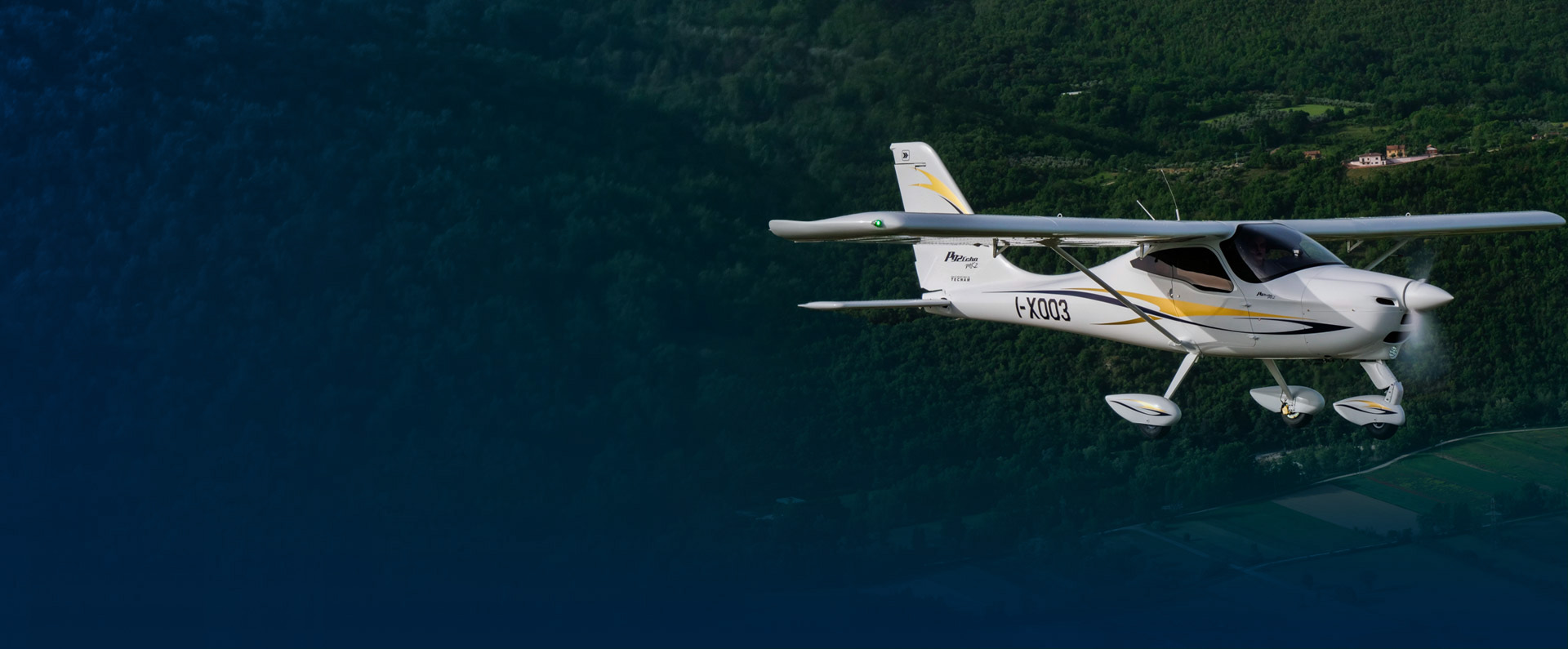

Back to the Future!

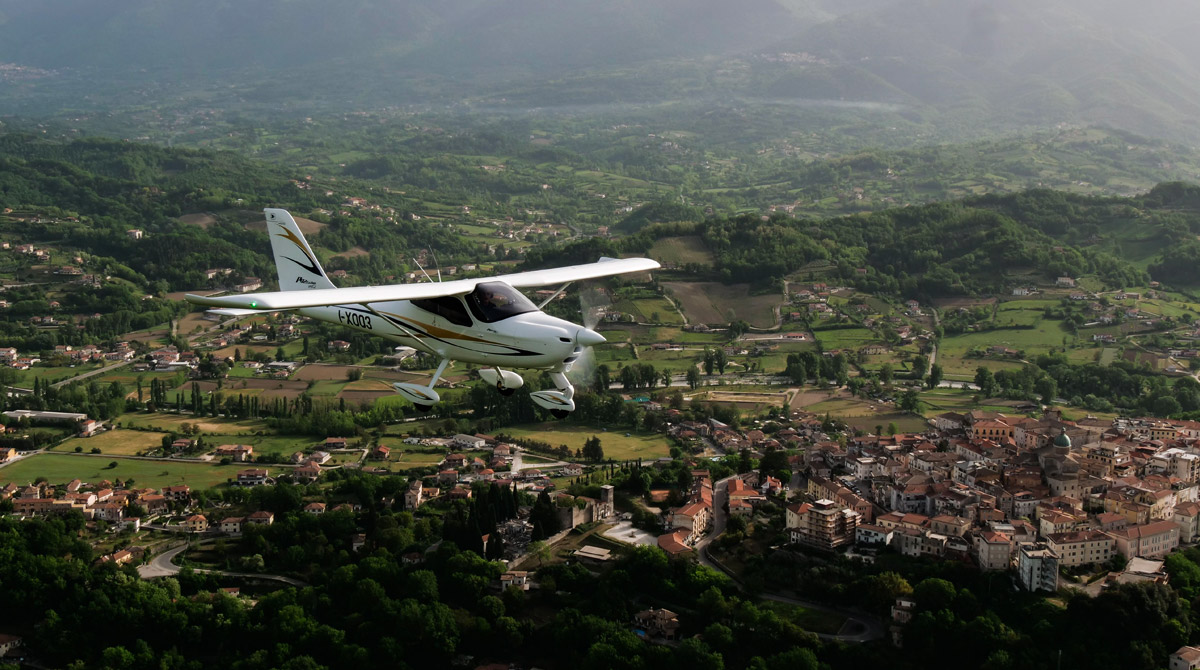

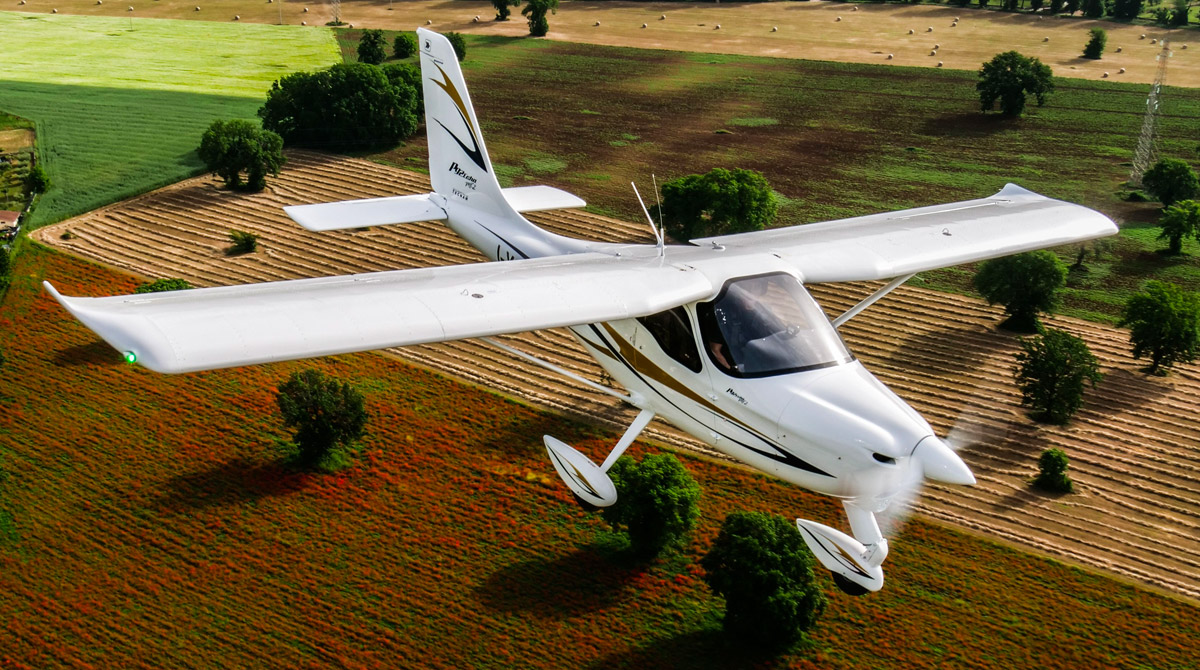

After 27 years, the Tecnam P92 comes back with a new version: always high wing, two place, single engine airplane equipped with tricycle landing gear.  The P92 Echo MkII comes today with up-to-date technology, composite fuselage, glass avionics and the same pleasant flying qualities: safe and easy to fly with beauty, inside and outside.


Quick facts

0m

Take Off Run 328 ft

Start up and fly!

115kts

Max Cruise Speed

213 km/h

0

Seating

Two seats side by side.

0

Best seller

More than 2500 sold worldwide.

Exteriors

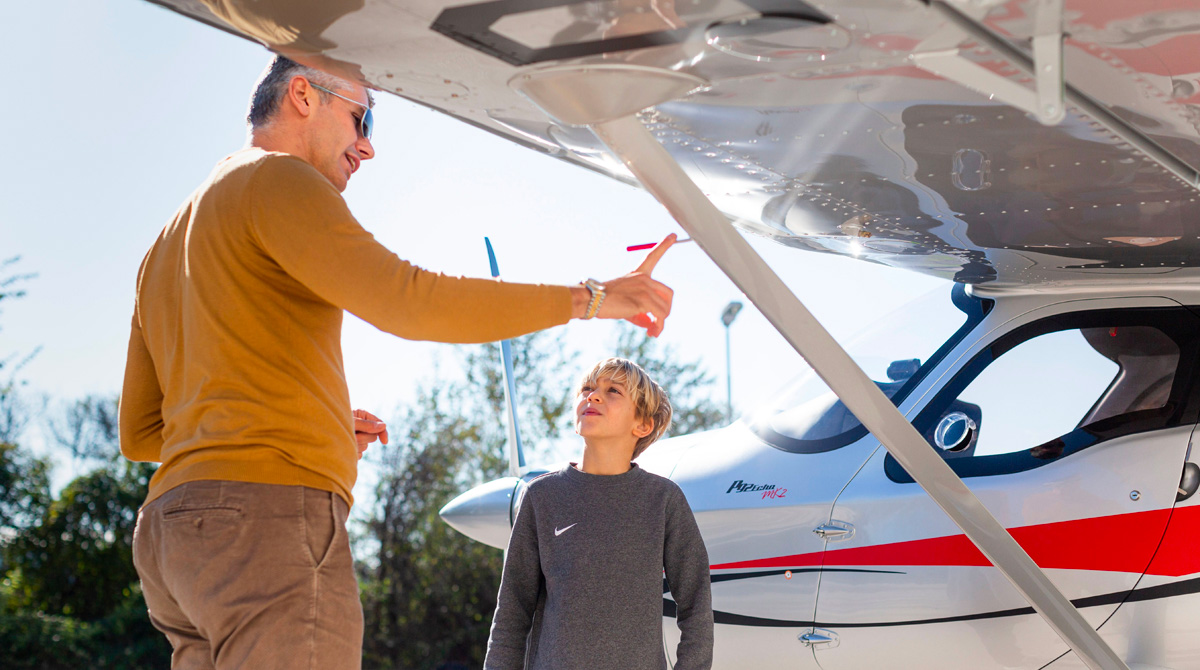

The P92 Echo MkII has both metal wings and a metal stabilator. Tecnam chose to construct the P92 Echo MkII with metal wings and stabilator structures for strength, reliability, and the ability to flex in flight, thereby ensuring a more comfortable ride. To produce the desired increase in cabin width and greater aerodynamic efficiency, Tecnam chose carbon fibre.
The decision to use both materials was for the optimisation of aerodynamic qualities, flight characteristic, and reliability. This addition enables Tecnam to make construction decisions based on optimum design and structural integrity rather than purely the cost of production.
The doors which are lined with automotive type door seals, seats that give full support with excellent leg room, side map pockets as well as pockets in the back of the seats all combine to make the Eaglet a very comfortable aircraft.
Some of the advantages: Superior performance and flight characteristics. Low stall speed with excellent response at all speeds. Stable and Responsive with uncompromising build quality (based on CS/VLA certified Aircraft). Excellent visibility, roomy, quiet and ergonomic.
The all movable type (stabilator) horizontal tail, traditional on Tecnam aircraft, allows excellent controllability and excellent “hands off” longitudinal stability.

Interiors Details

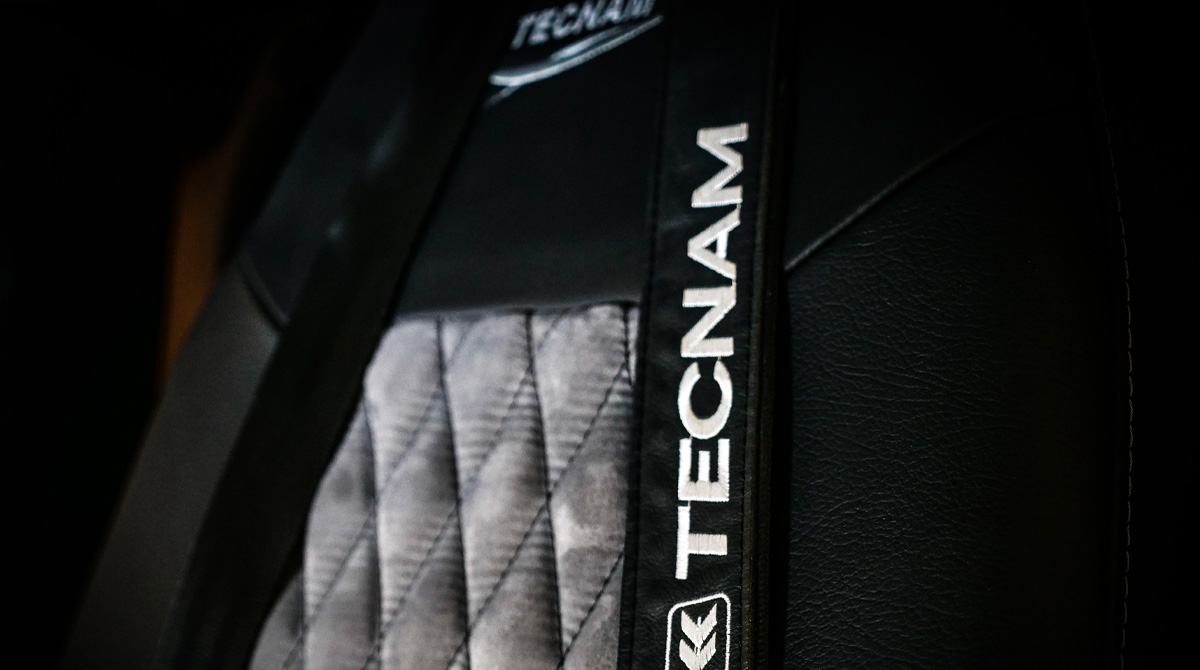

The cabin offers newly designed seats and seat rails which are easily operated and adjustable fore and aft via a single handle with a reinforced area between the rails to make cabin access even easier. A roomy baggage compartment with internal acccess accommodates voluminous items.
A wide cockpit panel provides plenty of room for glass panel avionics.
A comfortable armrest and USB charger round out the luxurious interior.
Everything about the Tecnam P92 Echo MkII is designed to allow you and your passenger to experience the most outstanding style, comfort, and beauty of flight..
Enjoy the P92 Echo MkII!

Avionics

C-1001   P92 ECHO MKII 100HP Standard

Includes the following equipment:

Flight Instruments And Indicators

  • Magnetic Compass
  • Airspeed Ind.
  • Altimeter Dual Mode (In/Mb)
  • Vertical Speed
  • Bank Indicator
  • Pitot System
  • Static System
  • Stabilator Trim Position Indicator

C-1002   P92 ECHO MKII 100HP GARMIN G3X


Includes the following equipment:

Two Display GDU 460 With EIS

GDU460
GDU460
ADAHRS GSU 25
GEA 24 Engine Instrument Module
GMU 22 Magnetometer
GTP 59 Temperature Probe
LRU KIT
INSTALLATION KIT
G3X SENSOR KIT
GA 56 Antenna

Gsu Configuration
AMPS (AMMETER SHUNT OR HALL EFFECT)
MONITOR CHT
AIRCRAFT BUS VOLTAGES
OIL TEMPERATURE
OAT
OIL PRESSURE
MANIFOLD PRESSURE
FUEL PRESSURE
RPM
TRIM INDICATOR
LH + RH FUEL QTY

Avionic Package

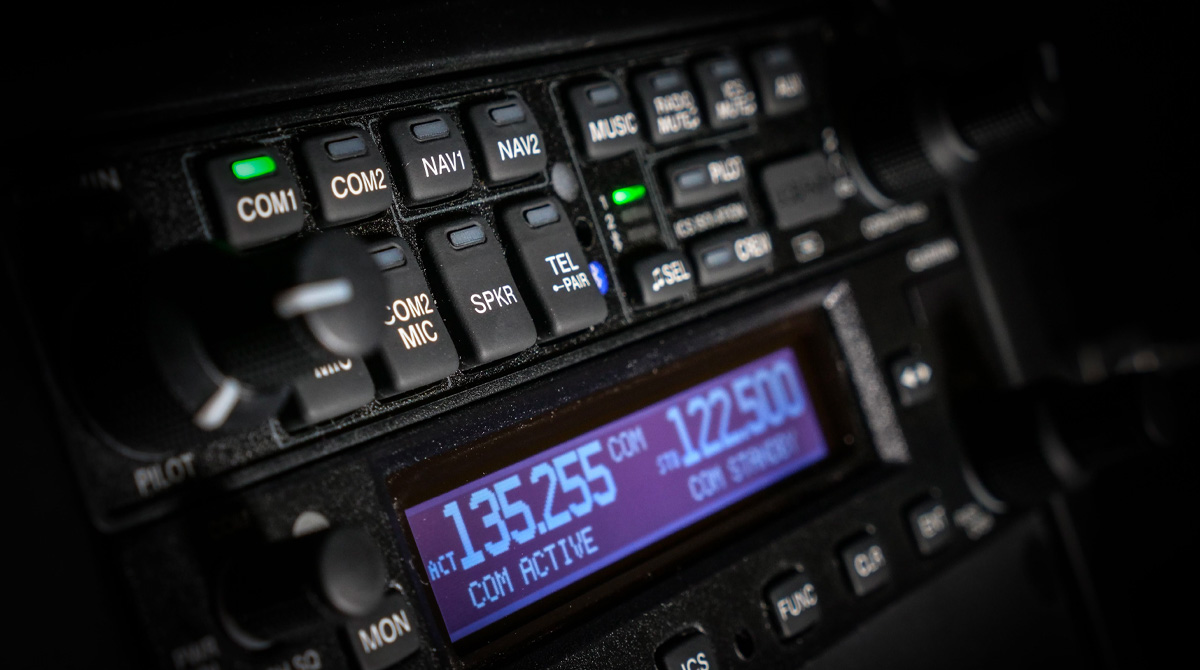

GARMIN GMA 245 Audio Panel
GARMIN GTR 225A COM
GTX 35R Transponder mode S remote mounted
ELT KANNAD 406 MhZ
STICK PUSH-TO-TALK SWITCH-PILOT/COPILOT
MIC & PHONE JACKS-PILOT/COPILOT

Antennas:
Transponder
VHF
GPS
ELT

Export certification requirements may require additional equipment and charges.

Standard Equipment

Flight Instruments And Indicators
Magnetic Compass
Airspeed Ind.
Altimeter Dual Mode (In/Mb)
Vertical Speed
Bank Indicator
Pitot System
Static System
Stabilator Trim Position Indicator

Engine Instruments
Tachometer
Hour Recorder
Oil Press
Oil Temp.
Head Temp.
Fuel Press.
Voltmeter
LH + RH Fuel Q.ty
Stabilator Trim Position Indicator
Flap Indicator

Flight Controls
Hydraulic Toe Brakes
Parking Brake
Electrical Flaps
Dual Flight Controls
Steerable Nose Wheel
Stabilator Trim (Electric Actuated From Stick)
Engine Controls:
– Two Throttles
– Choke
Flight Trim Controls:
Stabilator With Indicator
Fuel Control Selector Andair

Panel Switches:
Starter Key ACS
Split Starter
Avionic Master

Electrical System
12 Volt 18A Amp. Battery
12 Volt Alternators-20 Amp.
Circuit Breaker Panel
12 Volt Socket

Fuel System
Two Integral Fuel Tanks With 95L 25 USgal Total Capacity
Engine Driven Fuel Pump
Fuel Tank Quick Drain , Two

Interior
Pilot And Copilot Seats:
– Adjustable Fore And Aft
Seat Belts
Wall To Wall Carpeting
Map and Storage Pockets
Luggage Compartments

Exterior
Epoxy Corrosion Proofing, All Structure
LH/RH Front Door Pilot/Copilot, Lock And Key
All Lateral And Rear Windows Tinted Brown
Main Wheels, 5,00 X 5
Nose Wheel, 5,00 X 5
Wheel Fairing

Exterior Lights
None

Cabin Confort System
Heating System
Ventilator Adjustable 2 Place

Powerplant And Propeller
Engines Rotax 912UL 100 Hp, 4 Cylinders
Liquid/Air Cooled, Integrated Reduction Gear Dual Ignition System
Throttle Control
Tubular Steel Engine Mount
Propeller Sensenich, 2 Blade Fix
Propeller Spinner
Air Filter
Oil Filter
Oil And Water Coolers

Product Support/Documents
Manufacturers Full Two Year Limited Warranty Pilots
Operation Handbook
Maintenance Manual
Parts Catalog

Performance





472.5 kg
ULM





600 kg
ULM/LSA

Max Cruise Speed KTAS

115 kts

213 km/h



115 kts

213 km/h

Stall Speed (Flaps Down Power Off) KCAS

35 kts

64 km/h



39 kts

72 km/h

Practical ceiling

14000 ft

4267 m



14000 ft

4267 m

Take off run

328 ft

100 m



460 ft

140 m

Take off distance

755 ft

230 m



885 ft

270 m

Landing Run

328 ft

100 m



393 ft

120 m

Landing Distance

755 ft

230 m



885 ft

270 m

Empty Weight

645 lb

293 kg



750 lb

340 kg

Optional Equipment

C-1003 P92 ECHO MKII 100HP EU 600 Kg Package

Avionic Package
GARMIN GMA 245 Audio Panel
GARMIN GTR 225A COM
GARMIN GTX 335 TRANSPONDER with GPS
KANNAD ELT 406 Mhz WITH REMOTE MOUNTED SWITCH
STICK PUSH-TO-TALK SWITCH-PILOT/COPILOT
MIC & PHONE JACKS-PILOT/COPILOT

Antennas:
VHF
Transponder
ELT

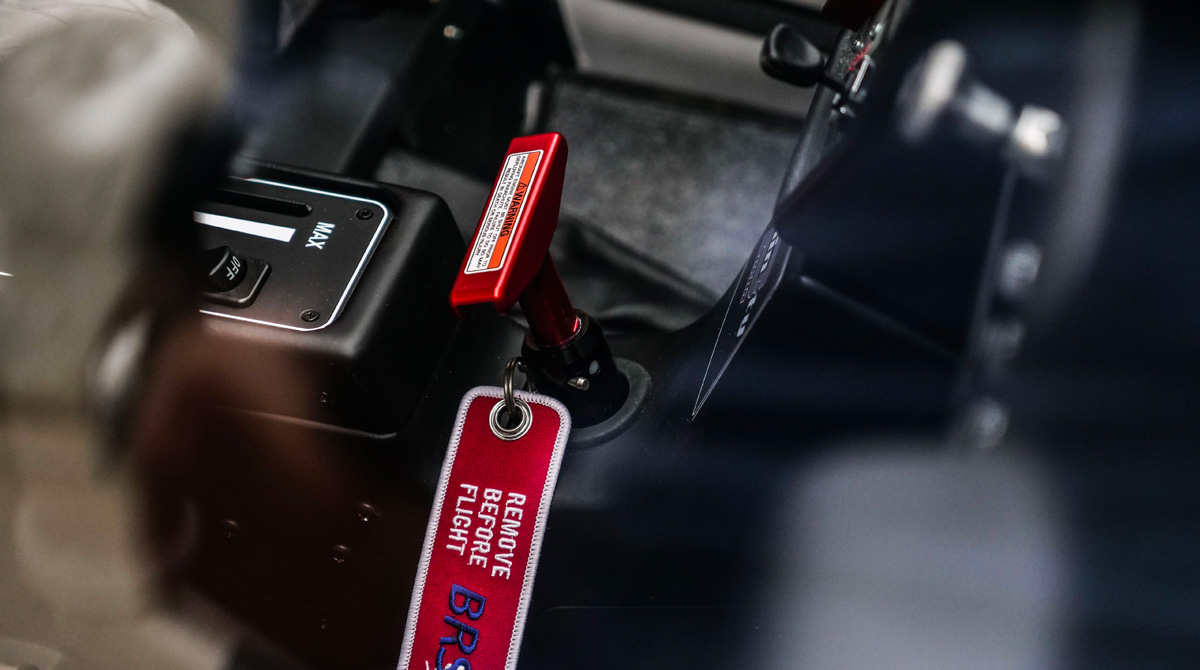

Emergency Parachute System

C-1004 P92 ECHO MKII 100HP US LSA

  • Extended Warranty for Rotax Engine (1 year extension)
  • Fire Wall Inox
  • Airspeed Ind., Kts • Panel Switches:
  • Tie Down Rings
  • Fire Sleeve On Fuel and Oil Tubes
  • Thermostatic Valve Oil
  • Baggage Compartment Net
  • External Power Supply
  • Taxi Light LED
  • Wing Light Green/Red, White and Strobe AVEO
  • Auxiliary Fuel Pumps, Electric
  • Windshield Defroster

Specification

Aircraft Dimensions

Fuselage Height 2.67 mt – 8.76 ft
Fuselage Length 6.97 mt – 22.87 ft
Wingspan 9 mt – 29.5 ft
Cabin Height (seat to cover) 0.91 mt – 3 ft
Cabin Width 1.14 mt – 3.74 ft
Max Seating capacity 2
Fuel tank capacity 2 x 55 lt – 2 x 14.5 US Gal

Powerplant

Engine Manufacturer ROTAX 912 S2
Engine Power 98 HP
Time Before Overhaul 2000 hrs
Propeller Hoffmann Two-Bladed Fixed Pitch
Fuel Consumption 17 lt/h – 4.50 US Gal/h
Fuel Type Mogas and Avgas

Design Weight & Loading

Maximum Take Off Weight 650 kg – 1433 lb
Empty Weight, Standard 400 kg – 882 lb
Useful Load 250 kg – 551 lb
Baggage allowance 20 kg – 44 lb

Performance

MTOW 650 kg

Max Cruise Speed (KTAS) 222 km/h – 120 kts
Stall Speed (Flaps Down Power Off) KCAS 81 km/h – 44 kts
Practical ceiling 4.267 mt – 14,000 ft
Take off run 207 mt – 679 ft
Take off distance 428mt – 1404 ft
Landing Run 173 mt – 568 ft
Landing Distance 382 mt – 1253 ft
Rate of climb 3,84 m/sec – 755 ft/min
Range 703 NM – 1302 km
Flight Rule VFR Day/VFR Night

Specifications subject to change without notice. Always consult the Aircraft Flight Manual.
